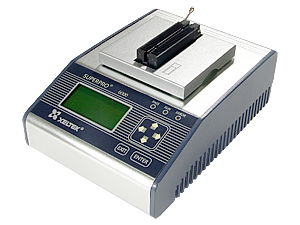

About Superpro 6100n

USB2.0 Interfaced Ultra-high Speed Stand-alone Universal Device Programmer

Usb Ultra Highspeed Standalone Superpro 6100n

About Features Superpro 6100n:

• Until now,Support 414 IC manufacturer, 104297 pcs devices and keeps growing.
  Features:
• Supports 87454 types of devices from 305 IC manufacturers (by 3/15/2013) and keeps growing.
• Supports EPROM、Paged EPROM、Parallel and Serial EEPROM、FPGA、PROM、FLASH(NOR & NAND)、BPROM、NVRAM、SPLD、CPLD、EPLD、Firmware HUB、Microcontroller、MCU；Supports devices with Vcc as low as 1.2V. Socket Adaptors available for DIP、SDIP、PLCC、JLCC、PGA、LGA、SOIC、SOJ、SOT、QFP、TQFP、PQFP、VQFP、MQFP、LQFP、TSOP、SOP、TSOPII、PSOP、SSOP、TSSOP、SON、EBGA、FBGA、FTBGA、VFBGA、μBGA、CSP、SCSP、QFN、HVQFN etc.
• High programming speed.
• Built with 144 universal pin-drivers. Universal adaptors are available for varies packages up to 144 pins. Quick new device support.
• Popular NAND FLASH Platform supported including Samsung (XSR1.0/1.6), QualComm, HYNIX（HIFFS）, MTK(Solution V1.1), ICERA (v1.0/2.0), ST （7162、7141等）, AMLOGIC(IF2/0), REALTEK, PICOCHIP, DataLight ( Flash FX Pro), Marvell(310/303/920/935…), BroadCom, ZTE, Intel (CE4100)，UBI, LEADCORE(L1809OG), MSATR etc. Customer-specific NAND solution available.

About Superpro 6100n

• Device Updates:

• XELTEK updates software and device algorithm regularly.
• View the latest Device List .
• Download the current software version free of charge .(Please request link via email)
• Updates are available by mail at a nominal charge.
• XELTEK also adds devices upon customer's request at its option.

Warranty Support:

• Programmer is warranted to be free of manufacturing or workmanship defects for one year from the date of purchase.
• Online Technical Support is also available 24 hours or you may call us during our business hours through Friday 8:30am to 5:30pm (Beijing Time).






Hardware & Electrical Specifications:



• Supported devices: EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM, FLASH memory (NOR & NAND)n, BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU.
• Packages supported: DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, EBGA, FBGA, VFBGA, uBGA, CSP, SCSP, ...
• PC interface: USB2.0
• Stand-alone Feature: Supported, Compact FLASH Card
• Electrical spec. of the AC adapter: AC 100-240V , output 12V/2A; power:15W
• Mechanical parameter: Main unit: Size: 216*148*94 mm Weight: 1.6Kg.
• Packing Box: Size 301*252*145 mm Weight: 2.8 Kg.

Accessories:

• Main unit, AC adaptor, USB2.0 cable, register card
• Optional accessories: adaptor in varies packages, CF card for stand-alone operation.
• DIP48 adaptor are no longer standard with SP6100N and SP6104N, From 1 June 2020 .

Socket Adapters

Sockets and connectors used to make Xeltek SuperPro adapters are sourced from world renowned manufacturers such as Yamaichi, Enplas, TI, Wells and Okins. Designed to withstand various application demands, socket adapters are manufactured with strict quality assurance guidelines. Users are encouraged to use Xeltek adapters with SuperPro models to avoid project shutdown from third party adapter incompatibility.
